Time to Roclet

admiral’s use of custom roclets to enhance and extend examples in function documentation.

Ben Straub (GSK, Philadelphia, United States)

Required xkcd comic

  • Do you read the manual first?
  • Do you just dive in and read the manual afterwards?
  • I am a dive in and then read the manual later.

The next 20 minutes…

  • Brief intro to the problem. Hint: documentation
  • Infrastructure behind R package documentation
  • {admiral} R package and its documentation
  • How {admiral} used {roxygen2} extension abilities to solve its problem

So at the end of 20 minutes…

I hope you walk away with:

  • How R package documentation is created.
  • How admiral package documentation is created.
  • Better documentation means users are happy but also allows AI/LLMs to easier understand and harvest information from your R package.

What is {admiral}?

  • Provides an open source, modularized toolbox that enables the pharmaceutical programming community to develop ADaM datasets in R.

  • The package is available from CRAN and can be installed with: install.packages("admiral")

  • Users guides for doing BDS, OCCDS, TTE, ADSL, ICE, Date/Times and more available.

  • A sea of function documentation!!

Introduction: A Sea of Documentation

  • Detailed argument definitions and inline examples aid understanding complex functions.
  • In {admiral}, we love lots of documentation.
  • Problem: As number of functions and complexity of functions grew, documentation examples became unwieldy and hard to navigate.
  • Solution: Extended {roxygen2} package’s roclets to better display and curate examples.
  • This presentation explores the technical details and positive impact on {admiral}’s function examples.

R Packages: The Foundation of the R Ecosystem

  • R packages bundle code, data, documentation, and tests in a standardized format.
  • They facilitate code sharing and reuse, expanding R’s functionality.
  • Key components:
    • R functions in R/ directory. Documentation in man/
    • Documentation using roxygen comments in .R produce the .Rd files.
    • Few other folders and needed files - Check out: https://r-pkgs.org/

{roxygen2}: Streamlining R Docs

  • The roxygen2 R package simplifies documentation within R packages.
  • Developers write documentation directly alongside function definitions using #' comments.
  • Benefits:
    • Keeps code and documentation co-located, making updates efficient.
    • Automatically generates .Rd files (standard R documentation) from comments.
  • This system significantly reduces effort, enhancing user understanding of functions.
  • Check out: https://roxygen2.r-lib.org/

Roxygen comments in an .R file

Here’s a brief example of a function add_numbers() with its roxygen documentation:

#' Add two numbers together.
#'
#' This function takes two numeric inputs and returns their sum.
#'
#' @param x A numeric value, the first number.
#' @param y A numeric value, the second number.
#' @return The sum of `x` and `y`.
#' @examples
#' add_numbers(5, 3)
#' add_numbers(10, -2)
add_numbers <- function(x, y) {
  x + y
}

Documentation Files: .Rd

% Generated by roxygen2: do not edit by hand
% Please edit documentation in R/add_numbers.R
\name{add_numbers}
\alias{add_numbers}
\title{Add two numbers together.}
\usage{
add_numbers(x, y)
}
\arguments{
\item{x}{A numeric value, the first number.

\describe{
\item{Default value}{none}
}}

\item{y}{A numeric value, the second number.

\describe{
\item{Default value}{none}
}}
}
\value{
The sum of \code{x} and \code{y}.
}
\description{
This function takes two numeric inputs and returns their sum.
}
\examples{
add_numbers(5, 3)
add_numbers(10, -2)
}

Don’t touch!

  • I do not recommend editing these by hand - ever - unless you want pain!

Let’s recap!

  • 📝 Write R code in .R files
  • ✍️ Add #' roxygen comments above functions objects
  • 🏷️ Use roxygen tags @param, @return, @examples, etc:
  • ▶️ Run devtools::document() or Ctrl/Cmd + Shift + D
  • ⚙️ {roxygen2}processes .R files extracts comments & tags
  • 📄 .Rd files auto-generated in man/ directory
  • 📚 R help system displays documentation to users

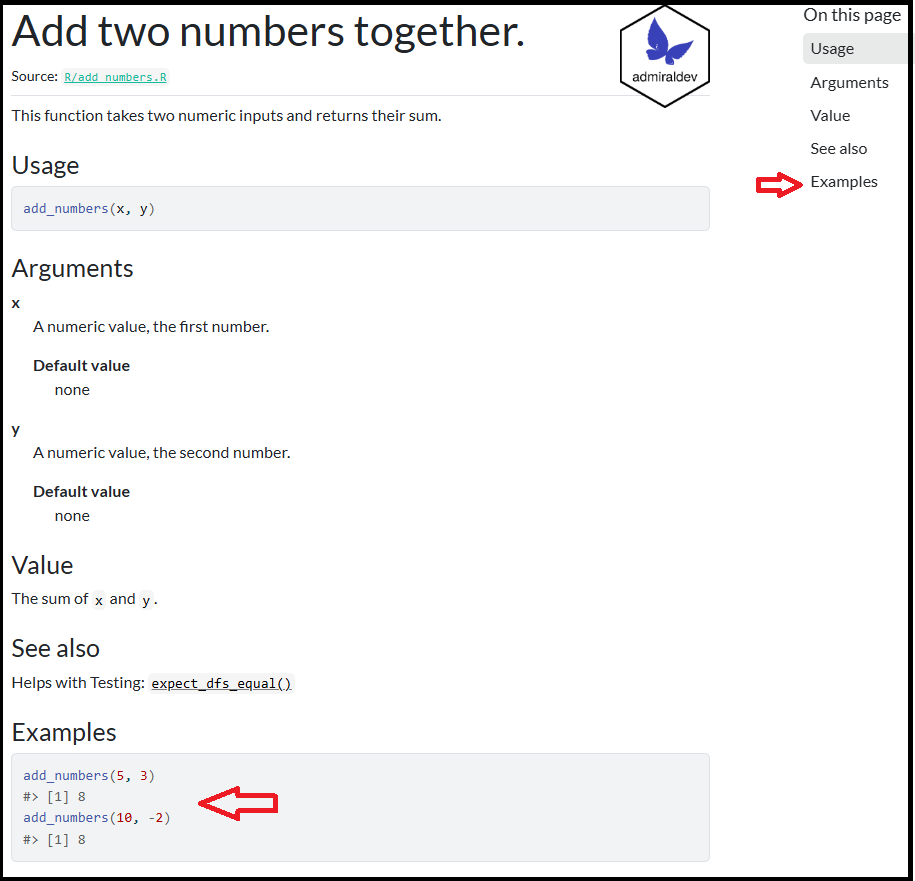

Render in R help file and pkgdown

{dplyr} - a package to follow!

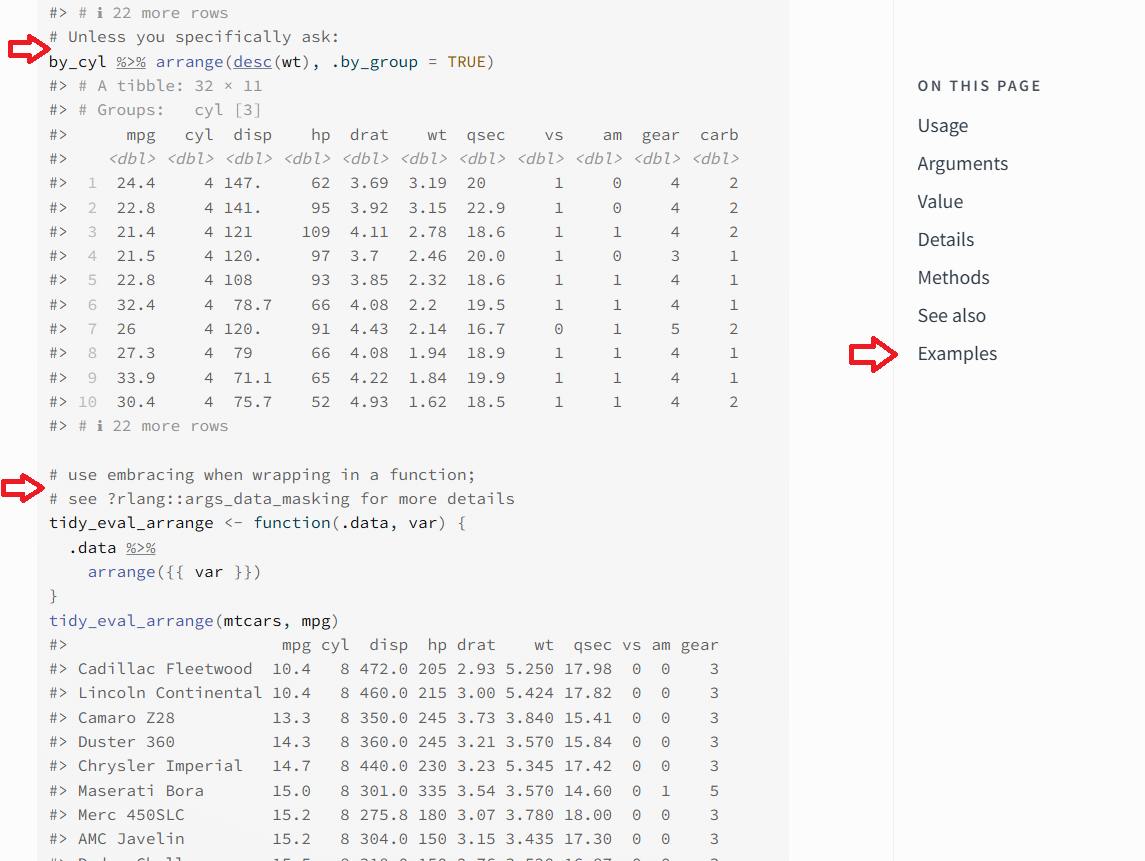

{dplyr}

  • #’s used to delineate new example with explanation
  • Creates a sea of examples
  • arrange() Examples are not navigable on right hand side

{admiral} - in the footsteps…

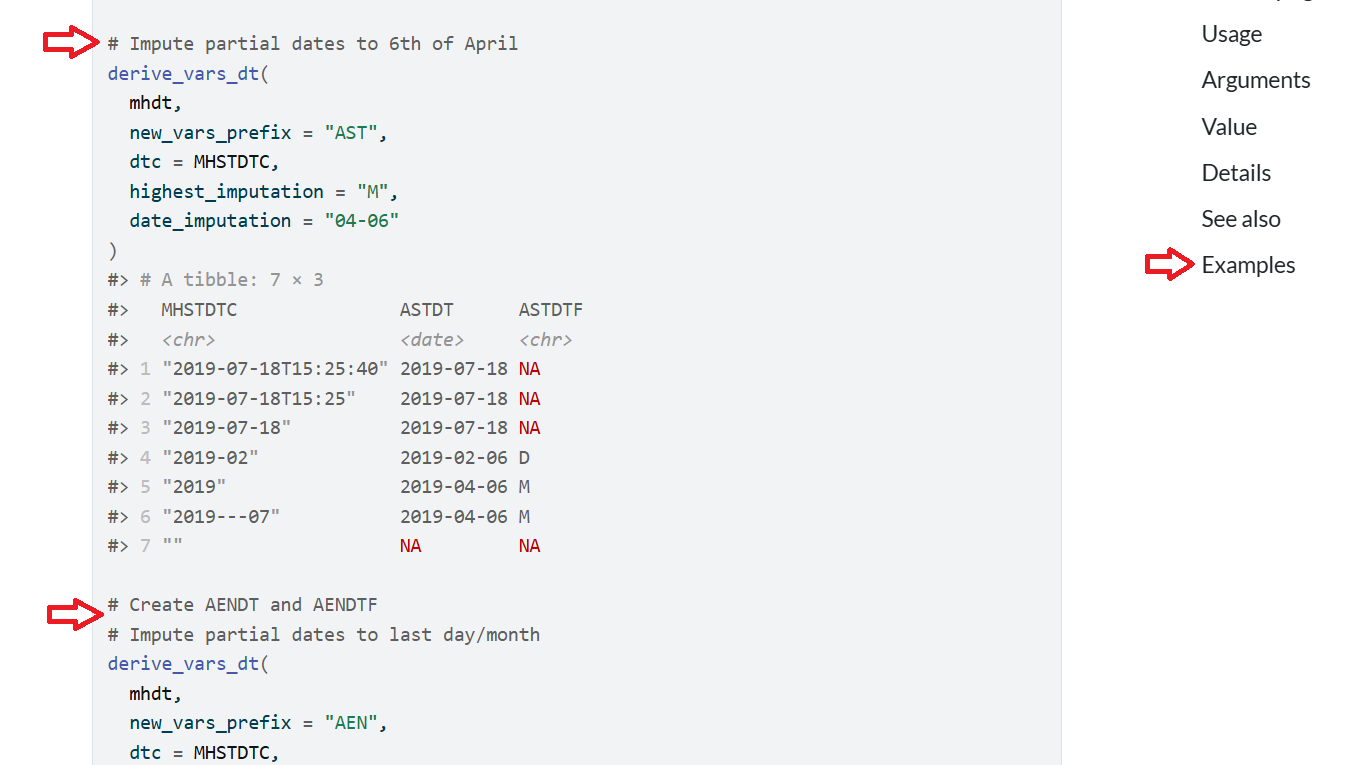

{admiral} 1.2.0

  • #’s used to delineate new example with explanation
  • Creates a sea of examples
  • derive_vars_dt() Examples are not navigable on right hand side

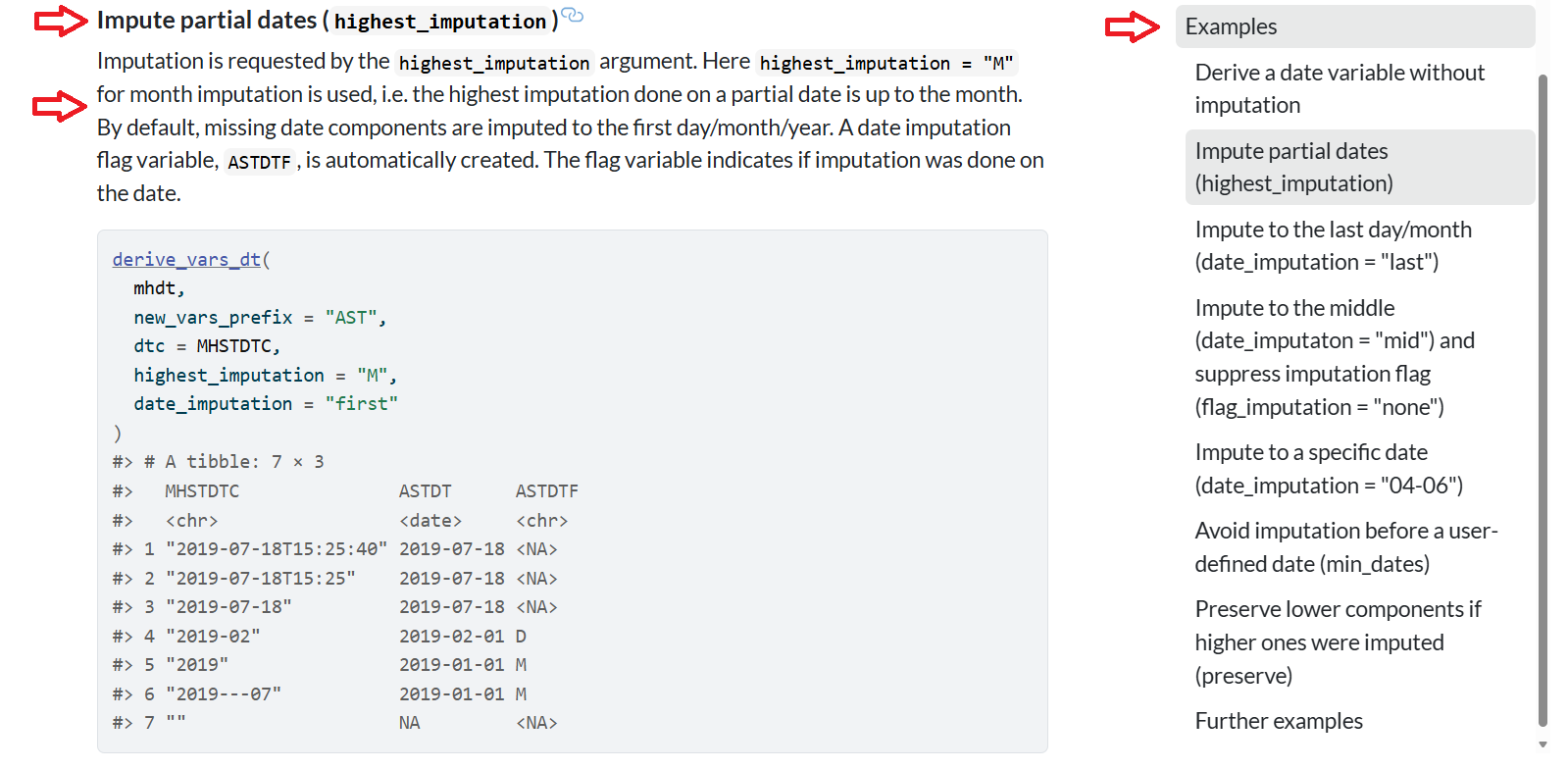

{admiral} 1.3.0

  • A nice linkable title
  • Description of example
  • Right hand side has navigable example
  • derive_vars_dt() Examples are NOW navigable on right hand side

How was this done?

  • {roxygen2} allows for extensions
  • {admiraldev} houses the functions in roclet_rdx.R to allow for extensions

Extending the roclet

#' A Demo Function
#'
#' This function is used to demonstrate the custom tags of the `rdx_roclet()`.
#'
#' @param x An argument
#' @param number A number
#' @permitted A number
#' @param letter A letter
#' @permitted [char_scalar]
#' @default The first letter of the alphabet
#' @keywords internal
#' @examplesx
#' @info This is the introduction.
#' @caption A simple example
#' @info This is a simple example showing the default behaviour.
#' @code demo_fun(1)
#' @caption An example with a different letter
#' @info This example shows that the `letter` argument does not
#'   affect the output.
#' @code demo_fun(1, letter = "b")
demo_fun <- function(x, number = 1, letter = "a") 42

Eck! A small subset of the .Rd

% Generated by roxygen2: do not edit by hand
% Please edit documentation in R/demo_fun.R
\name{demo_fun}
\alias{demo_fun}
\title{A Demo Function}
\usage{
demo_fun(x, number = 1, letter = "a")
}

...

\keyword{internal}
\section{Examples}{

This is the introduction.
\subsection{A simple example}{

This is a simple example showing the default behaviour.

\if{html}{\out{<div class="sourceCode r">}}\preformatted{demo_fun(1)
#> [1] 42}\if{html}{\out{</div>}}}
\subsection{An example with a different letter}{

This example shows that the \code{letter} argument does not affect the output.

\if{html}{\out{<div class="sourceCode r">}}\preformatted{demo_fun(1, letter = "b")
#> [1] 42}\if{html}{\out{</div>}}}}

Technical Takeaway

  • New Tags on the Block:
    • @examplesx
    • @caption
    • @info
    • @code
  • Get into the purpose, how it works and the processing (briefly!!)

@examplesx - The Examples Section

Purpose: Marks the start of the entire examples section.

How it Works: Triggers transform_examplesx() to begin processing the custom tags that follow.

Processing: Groups @caption, @info, and @code tags into structured examples; cleans up special characters to avoid formatting issues in the final docs.

@caption - Example Title

Purpose: Sets the title for an individual example.

How it Works: Each @caption starts a new example block; the text that follows becomes the title.

Processing: Formatted as a \subsection{} inside the main \section{Examples}{} in the final .Rd file.

@info - Example Description

Purpose: Adds a short description or context for a specific example.

How it Works: Placed after @caption and before @code to explain what the example demonstrates.

Processing: The descriptive text is added to the example block and included in the final documentation.

@code - Executable Example Code

Purpose: Contains the actual R code that gets run and displayed in the docs.

How it Works: The code following @code is executed; use [expected_cnds = "warning"] to flag expected warnings or errors.

Processing: Code runs in a controlled environment via execute_example(); unexpected conditions cause an R CMD check failure, ensuring examples actually work.

Conclusion

  • The admiral R package faced challenges with unwieldy function documentation due to complex and numerous examples.

  • To address this, admiral extended roxygen2’s roclets by introducing custom Roxygen tags: @examplesx, @caption, @info, and @code.

  • These custom tags enable a structured, user-friendly presentation of examples, providing scaffolding for complex function usage.

  • This innovation significantly improved the overall user experience and the quality of admiral’s function documentation.

  • In this age of AI - high quality documentation will be key to a software products long-term usefulness.

Question

What is the name of the documentation package that could be extended to address admiral’s needs?

Resources

R Packages

roxygen2

dplyr arrange()

admiral

admiraldev roclet_rdx.R
